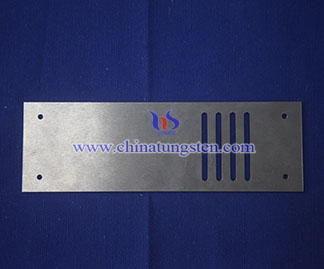

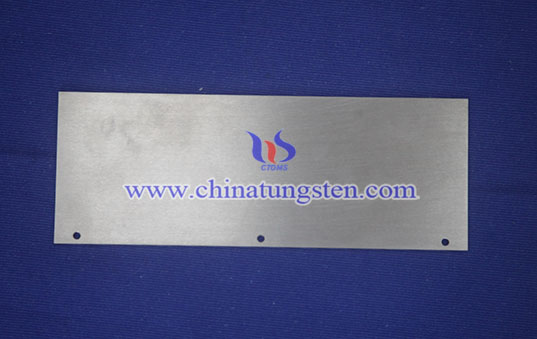

Tungsten Alloy Radiation Shielding Sheets

1. What are Tungsten Alloy Radiation Shielding Sheets?
Tungsten alloy radiation shielding sheets are thin radiation protection components made from high-density tungsten alloy, typically with a thickness below 2 mm. Compared with conventional tungsten alloy shielding plates, these sheets provide lightweight design, space-saving structures, and precision installation advantages. Leveraging high density and atomic number of tungsten alloy, CTIA’s tungsten alloy radiation shielding sheets effectively attenuate X-rays and γ-rays in limited spaces, and are widely used in medical equipment, nuclear technology, industrial inspection, aerospace, and precision instruments.

2. Features of CTIA's Tungsten Alloy Radiation Shielding Sheets
(1) Efficient Radiation Shielding: Provides excellent X-ray and γ-ray attenuation with a density of 16.5–18.8 g/cm³, achieving effective protection with reduced thickness compared with lead materials.
(2) Thin and Lightweight Structure: Enables compact radiation protection designs in limited spaces, suitable for medical imaging equipment, precision instruments, and aerospace systems.
(3) Lead-Free Environmental Performance: Contains no lead and eliminates contamination risks associated with traditional lead shielding materials.
(4) Excellent Mechanical Performance: Provides high strength, corrosion resistance, and dimensional stability, with tensile strength up to 700–1000 MPa, while maintaining good machinability and weldability.

3. Applications of CTIA's Tungsten Alloy Radiation Shielding Sheets
(1) Medical Equipment: Used in X-ray tube shielding components, CT equipment shutter blades, detector shielding parts, and Multi-Leaf Collimator (MLC) leaves for radiotherapy systems.
(2) Nuclear Medicine: Used as shielding liners for medical isotope transport containers, supporting the safe storage and transportation of radioactive materials.
(3) Industrial Inspection and Research: Used in industrial CT collimators, nuclear industry shielding components, and radiation protection structures for research equipment.
(4) Nuclear Industry: Used in radioactive waste shielding covers, contaminated material storage containers, and reactor shielding structures for high-energy γ-ray protection.
(5) Aerospace: Used in spacecraft shielding windows, radiation protection structures, and electronic equipment shielding components to reduce cosmic radiation effects.
(6) Other Applications: Used in shielding walls, shielding floors, and high-density counterweight components.

4. Specifications of CTIA's Tungsten Alloy Radiation Shielding Sheets
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Compositions: 90WNiFe, 92.5WNiFe, 93WNiFe, 95WNiFe, 90WNiCu, etc.
(3) Tungsten Content: 90%–97%
(4) Density: 16.5–18.8 g/cm³
(5) Dimensions: Thickness 0.1–2 mm, width ≤500 mm, length ≤2000 mm, customizable

CTIA GROUP has nearly 30 years of experience in tungsten alloy manufacturing, providing customized tungsten alloy radiation shielding sheets with different compositions, density levels, and dimensions. Combining precision processing capabilities with material expertise, CTIA delivers thin shielding solutions for applications requiring compact design, effective radiation protection, and long-term reliability in medical, nuclear technology, industrial inspection, aerospace, and precision equipment fields.
