Tungsten Alloy Radiation Shielding in Nuclear Reactor

Tungsten alloy radiation shielding in nuclear reactor systems refers to high-density radiation protection components made from tungsten heavy alloy, primarily used for localized radiation shielding and beam control in Pressurized Water Reactors (PWR), Boiling Water Reactors (BWR), Fast Breeder Reactors (FBR), and nuclear power facilities. Nuclear reactors generate complex mixed fields of neutron and gamma radiation during operation, requiring effective shielding materials to reduce radiation exposure, protect personnel, and maintain reliable equipment performance. Compared with conventional lead and concrete shielding, CTIA’s tungsten alloy radiation shielding offers high density, high mechanical strength, high-temperature resistance, and structural stability, enabling effective radiation protection within compact structures for demanding nuclear reactor applications.

1. Features of CTIA’s Tungsten Alloy Radiation Shielding in Nuclear Reactor
(1) High Density & Superior Shielding Efficiency: Density of 16.7–18.8 g/cm³ provides strong attenuation of gamma rays and partial neutron radiation, effectively reducing radiation exposure.
(2) Compact Structure & Space Efficiency: High specific gravity enables smaller shielding structures, making them suitable for space-constrained nuclear equipment and confined reactor compartments.
(3) High Strength & Structural Stability: Tensile strength of up to 800–1000 MPa, together with good mechanical strength and wear resistance, supports long-term operational loads.
(4) High-Temperature & Radiation Stability: Good thermal and irradiation stability maintains material and structural performance under high-temperature and high-radiation conditions.
(5) Lead-Free Material & Environmental Safety: No lead or other hazardous heavy metals, reducing contamination risks and supporting safe use in nuclear industry environments.

2. Applications of CTIA’s Tungsten Alloy Radiation Shielding in Nuclear Reactors
(1) Reactor Core Area Shielding: Reduces gamma-ray and neutron radiation from fission reactions around the reactor core, reflector regions, and localized high-radiation areas.
(2) Reactor Pressure Vessel Protection: Limits radiation transmission to external structures and equipment around the reactor pressure vessel and critical interfaces.
(3) Control Rod Channel Shielding: Reduces radiation leakage around control rod drive channels and related structures while accommodating control rod movement requirements.
(4) Reactor Monitoring Systems: Reduces background radiation interference around neutron detectors, gamma-ray monitoring equipment, and instrumentation to improve detection reliability.
(5) Nuclear Fuel Assembly Inspection: Provides shielding and collimation structures for fuel assembly inspection equipment and nuclear measurement systems, improving measurement accuracy.
(6) Nuclear Experimental Equipment: Provides localized shielding, collimation, and radiation isolation for research reactors and nuclear physics experimental equipment.

3. Specifications of CTIA’s Tungsten Alloy Radiation Shielding in Nuclear Reactor
(1) Materials: W-Ni-Fe, W-Ni-Cu, and boron-containing tungsten-based alloys
(2) Tungsten Content: 90%–97%
(3) Density: 16.7–18.8 g/cm³

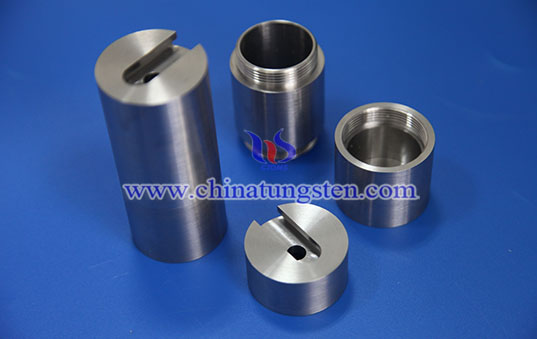

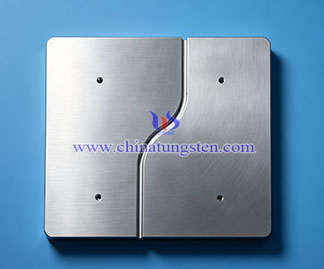

(4) Types: Shielding blocks, shielding plates, shielding rings, shielding sleeves, collimators, and custom-shaped shielding parts
(5) Dimensions: Customized according to application requirements

CTIA GROUP has nearly 30 years of experience in tungsten alloy manufacturing, with capabilities in powder metallurgy and precision machining. CTIA produces tungsten alloy shields according to reactor equipment configurations and radiation protection requirements, controlling shielding structure, dimensional accuracy, and assembly precision for reliable performance in nuclear reactor systems.
