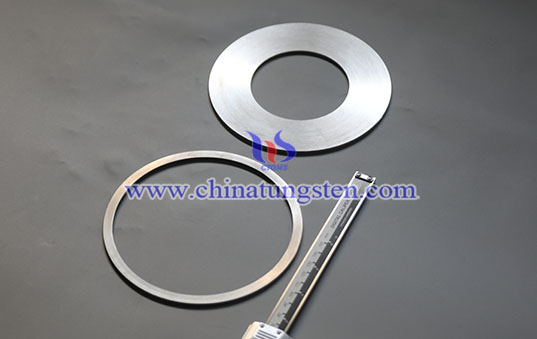

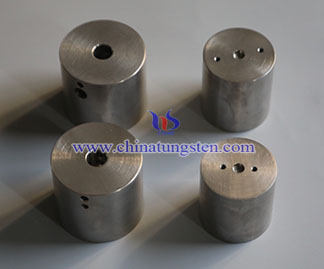

90WNiFe Tungsten Alloy Radiation Shielding Parts

1. What Are 90WNiFe Tungsten Alloy Radiation Shielding Parts?
90WNiFe tungsten alloy radiation shielding parts are high-density radiation shielding components manufactured through powder metallurgy, with tungsten as the matrix and nickel and iron as binder phases. High atomic number (Z=74) and high density enable effective absorption and attenuation of X-rays and γ-rays through mechanisms including the photoelectric effect and Compton scattering, providing localized radiation shielding in radiotherapy, nuclear medicine, industrial inspection, and related equipment.

2. Features of CTIA’s 90WNiFe Tungsten Alloy Radiation Shielding Parts
(1) Effective Radiation Shielding: Density of approximately 17.1 g/cm³ enables effective attenuation of X-rays and γ-rays, providing high shielding efficiency within limited space.
(2) High Strength and Impact Resistance: Tensile strength of approximately 750–950 MPa and elongation of approximately 10%–18% provide good load-bearing and impact resistance.
(3) Good Dimensional Stability: Coefficient of thermal expansion of approximately 4.5–5.5×10⁻⁶/℃ minimizes dimensional variation under temperature fluctuations, ensuring consistent fit for precision shielding structures.
(4) Non-Toxic and Eco-Friendly: Lead-free composition eliminates lead pollution and subsequent disposal issues.
(5) Good Precision Machinability: Supports precision turning, milling, drilling, and grinding, meeting manufacturing requirements for channels, slots, curved surfaces, and customized geometries.
(6) Flexible Structural Forms: Can be processed into shielding plates, blocks, tubes, rings, collimator leaves, and customized parts to fit diverse equipment structures.

3. Applications of CTIA’s 90WNiFe Tungsten Alloy Radiation Shielding Parts
(1) Medical and Healthcare
① Radiotherapy: Used in medical linear accelerators, Co-60 therapy equipment, and related collimation and shielding components to control X-ray or γ-ray scatter.
② Diagnostic Imaging: Used in detector shielding covers and localized shielding components for CT and Digital Radiography (DR) equipment to reduce stray radiation.
③ Nuclear Medicine: Used in syringe shielding sleeves, radiopharmaceutical dispensing containers, and localized shielding components for radioactive isotope handling to reduce operator exposure.
(2) Industrial Non-Destructive Testing and Radiographic Inspection
① Gamma Radiography: Used in source containers, shutters, and localized shielding components for radioactive sources such as Ir-192, Se-75, and Co-60, supporting pipeline, pressure vessel, and weld inspection.
② X-ray Inspection: Used in X-ray tube shielding covers, detector shielding blocks, and collimation components for X-Ray Diffraction (XRD) and X-Ray Fluorescence (XRF) equipment.
(3) Nuclear Industry and Radioactive Waste Management
① Radioactive Source Storage and Transport: Used in storage containers, localized shielding components, and auxiliary protection components for medical and industrial radioactive sources.
②Nuclear: Used in localized γ-ray shielding structures around hot cells, experimental facilities, and nuclear equipment.
③ Radioactive Waste Protection: Used in container liners and localized shielding components to reduce external radiation levels.
(4) Scientific Research and Security Inspection
① Scientific Research: Used in localized shielding blocks, collimators, and detector shielding components for particle accelerators, experimental equipment, and radiation detection systems.
② Security Screening Equipment: Used in localized shielding and collimation components for X-ray security screening equipment and radiation monitoring systems.
(5) Oil Exploration and Well Logging
① Logging While Drilling (LWD) Tools: Used in localized shielding structures and source compartments for γ-ray logging sources such as Cs-137 to reduce scattered radiation interference.

4. Specifications of CTIA’s 90WNiFe Tungsten Alloy Radiation Shielding Parts
(1) Grade: 90WNiFe
(2) Composition: W 90%, Ni 7%, Fe 3%
(3) Density: 17.0–17.1 g/cm³
(4) Forms: Plates, blocks, tubes, rings, collimators, MLC leaves, covers, and customized parts
(5) Dimensions: Customizable in length, width, thickness, and other parameters

CTIA GROUP draws on nearly 30 years of tungsten alloy manufacturing expertise, specializing in precision machining and production of high-density tungsten alloy shielding components. 90WNiFe tungsten alloy shielding parts are available in various structures, dimensions, and machining specifications for medical equipment, nuclear technology, industrial inspection, scientific research, and oil well logging, meeting demanding radiation shielding and precision assembly requirements.
