Tungsten Alloy Radiation Shielding in X-ray Equipment

Tungsten alloy radiation shielding in X-ray equipment is used for X-ray source protection, radiation leakage control, scatter radiation suppression, and imaging quality optimization. High-density tungsten alloy effectively attenuates X-rays, reducing radiation emitted in non-target directions and limiting radiation exposure within equipment and surrounding areas. CTIA manufactures tungsten alloy shielding components for X-ray tubes, detector assemblies, collimation systems, and other radiation control structures to support safe equipment operation and stable imaging performance.

1. Features of CTIA’s Tungsten Alloy Radiation Shielding in X-Ray Equipment
(1) High Density with Superior Shielding: Attenuates X-rays with a density of 16.7–18.8 g/cm³, reducing radiation leakage and improving radiation protection.
(2) Precise Radiation Control: Forms shielding covers, shielding rings, and collimation structures to control X-ray propagation and improve beam utilization.
(3) Scatter Radiation Suppression: Reduces scattered radiation entering detector regions, lowering background interference and improving image clarity and detection accuracy.
(4) Compact Structure: Reduces component thickness and installation space through high material density while meeting shielding requirements, facilitating equipment integration.
(5) Precision Machining: Supports precision machining, Wire Electrical Discharge Machining (Wire EDM), Electrical Discharge Machining (EDM), grinding, and polishing for complex structures and customized components.
(6) Reliable Long-Term Operation: Maintains mechanical strength, wear resistance, and dimensional stability during long-term X-ray equipment operation.

2. Applications of CTIA’s Tungsten Alloy Radiation Shielding in X-Ray Equipment
(1) X-Ray Source Protection: Shields X-ray tubes and source assemblies to reduce radiation leakage and limit radiation in non-target directions.
(2) Detector Scatter Shielding: Shields areas around flat-panel detectors and image receptors to reduce scattered radiation entering detector regions and improve signal-to-noise ratio.

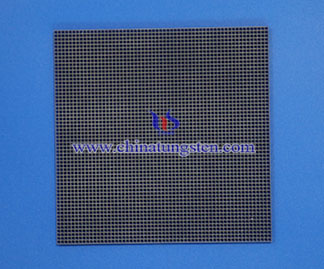

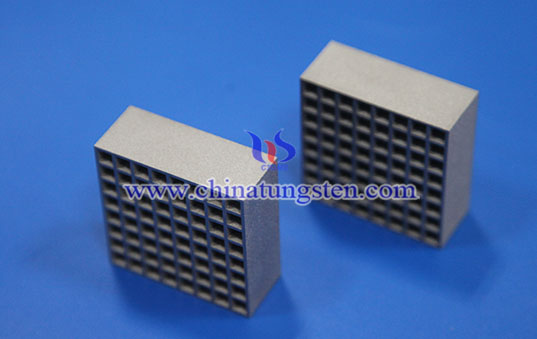

(3) X-Ray Beam Collimation: Forms collimators and beam control components with precision structures to limit X-ray propagation and improve imaging and inspection accuracy.
(4) Equipment Structural Shielding: Shields internal radiation isolation structures to reduce radiation interference between components and support stable system operation.
(5) Medical and Industrial Imaging Equipment: Supports DR, CT, mammography X-ray systems, industrial X-ray inspection equipment, and other imaging systems requiring radiation protection.

3. Specifications of CTIA’s Tungsten Alloy Radiation Shielding in X-Ray Equipment
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.7–18.8 g/cm³
(4) Forms: Shielding covers, shielding rings, protective sleeves, collimation components, and customized precision parts
(5) Customization: Dimensions, structural forms, and mounting requirements

CTIA GROUP draws on nearly 30 years of deep expertise in tungsten alloy manufacturing, focusing on design, precision processing, and manufacturing of tungsten alloy shields. CTIA customizes shielding components in different grades, density levels, and structural configurations according to X-ray equipment requirements, with controlled dimensions and assembly interfaces for reliable shielding performance, scatter suppression, compact integration, and long-term operational stability.
