Tungsten Alloy Radiation Shielding in CBCT Equipment

Tungsten alloy radiation shielding in CBCT equipment refers to key radiation control components in Cone Beam Computed Tomography (CBCT) systems, primarily used for X-ray source protection, scatter radiation suppression, and image quality improvement. Leveraging superior X-ray attenuation capabilities, CTIA’s tungsten alloy radiation shields effectively minimize radiation leakage, filter out unnecessary scattered radiation, and enhance detection signal quality, satisfying CBCT equipment demands for radiation protection and high-quality imaging.

1. Features of CTIA’s Tungsten Alloy Radiation Shielding in CBCT Equipment
(1) High Density with Excellent X-Ray Shielding: Density ranges 16.7–18.8 g/cm³, effectively attenuating X-rays to minimize radiation leakage and scatter interference.
(2) High Precision with Strong Radiation Control: Precision-machinable into collimation structures and protective assemblies to accurately restrict X-ray propagation coverage and boost imaging quality.
(3) Low Scatter for Improved Image Quality: Reduces stray radiation entering detection areas, lowering background noise and boosting CBCT image clarity.
(4) Compact Dimensions for Easy Integration: Leverages high specific gravity properties to reduce component dimensions while fulfilling shielding requirements, facilitating integration into compact CBCT equipment.
(5) Excellent Machinability with Flexible Customization: Supports precision machining, wire EDM, EDM, and grinding/polishing to fulfill diverse structural and dimensional requirements.
(6) High Stability for Reliable Long-Term Operation: Excellent mechanical strength and dimensional stability make them ideal for continuous medical equipment operational environments.

2. Applications of CTIA’s Tungsten Alloy Radiation Shielding in CBCT Equipment
(1) X-Ray Source Protection: Shields the CBCT X-ray tube assembly to reduce radiation leakage from non-target directions and maintain effective source shielding.
(2) Detector Shielding: Shields areas around flat-panel detectors to reduce scattered X-rays entering detector regions and improve signal collection.
(3) X-Ray Beam Collimation: Controls the CBCT X-ray beam to restrict beam propagation and define the required irradiation field.
(4) Internal CBCT Shielding: Shields gantry structures, rotating assemblies, and other internal areas to reduce stray radiation and support stable system operation.
(5) Medical Imaging Equipment: Supports dental CBCT, orthopedic CBCT, interventional CBCT, and other medical imaging systems requiring three-dimensional imaging and radiation protection.

3. Specifications of CTIA’s Tungsten Alloy Radiation Shielding in CBCT Equipment
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.7–18.8 g/cm³

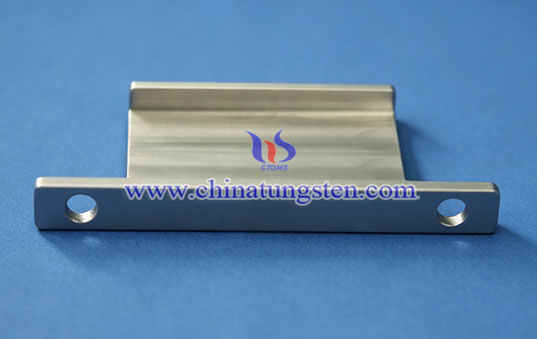

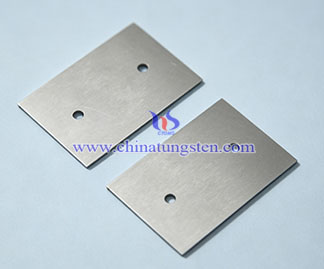

(4) Forms: Shielding covers, shielding rings, collimation components, shielding plates, and customized precision parts
(5) Customization: Dimensions, structural forms, and mounting requirements

CTIA GROUP has nearly 30 years of tungsten alloy manufacturing experience and specializes in production and precision machining of tungsten alloy shielding components. CTIA selects suitable material grades, density levels, shielding geometries, and mounting configurations according to CBCT equipment requirements, while controlling machining tolerances and surface quality to achieve consistent X-ray attenuation, precise structural fit, and reliable long-term performance.
