Tungsten Alloy Radiation Shielding in Aerospace

Tungsten alloy radiation shielding in aerospace refers to specialized radiation protection components used in satellites, spacecraft, deep-space probes, and high-altitude aircraft. High-density tungsten alloy attenuates X-rays, gamma rays, and some high-energy particle radiation, reducing the effects of space radiation on electronic components, detectors, and sensitive instruments. CTIA’s tungsten alloy radiation shielding is manufactured through powder metallurgy and precision machining for applications in space exploration, satellite electronics, aerospace instruments, and high-altitude flight equipment.

1. Why Does Aerospace Require Tungsten Alloy Shielding?
(1) Attenuates Radiation: Tungsten’s atomic number of 74 and tungsten alloy density of 16.7–18.8 g/cm³ enable effective attenuation of X-rays, gamma rays, and some high-energy secondary particles, reducing Total Ionizing Dose (TID) and Single Event Effects (SEE).
(2) Reduces Space Requirements: High material density provides strong shielding capability per unit volume, reducing shielding thickness and occupied space in compact satellite and detector systems.
(3) Withstands Launch Loads: Yield strength of some tungsten alloys can reach 750–1050 MPa, while high strength, hardness, and toughness withstand vibration, shock, and acceleration changes during rocket launch and maintain shielding structural stability.
(4) Maintains Dimensional Stability: A thermal expansion coefficient of approximately 4.5–5.5 × 10⁻⁶/K helps minimize dimensional changes caused by temperature variations, supporting fit accuracy during high- and low-temperature cycles in spacecraft operation.
(5) Enables Precision Machining: Compatible with turning, milling, grinding, drilling, threading, and wire EDM, enabling fabrication of thin-walled enclosures, protective rings, collimators, and complex custom geometries.

2. Applications of CTIA’s Tungsten Alloy Radiation Shielding in Aerospace
(1) Space Radiation Detection Equipment: Shielding covers, collimators, and localized protection structures for X-ray and gamma-ray detectors reduce the effects of stray radiation on detection signals.
(2) Satellite Electronics: Localized shielding around navigation, communication, remote sensing, and other sensitive electronic components reduces performance degradation caused by space radiation.
(3) Deep-Space Exploration Equipment: Localized shielding protects sensors, electronic modules, and other sensitive components against radiation environments involving Galactic Cosmic Rays (GCR) and Solar Proton Events (SPE).
(4) High-Altitude Flight Equipment: Electronic instruments, sensors, and other sensitive components in high-altitude aircraft use localized shielding to reduce the effects of high-energy radiation.
(5) Space Nuclear Power Systems: Localized shielding structures around Radioisotope Thermoelectric Generators (RTGs) and similar systems provide radiation protection, with material grades and shielding thickness determined by radiation source characteristics, installation position, and shielding calculations.

3. Specifications of CTIA’s Tungsten Alloy Radiation Shielding in Aerospace
(1) Grades: 90WNiFe, 93WNiFe, 95WNiFe, 97WNiFe, etc.
(2) Tungsten Content: 90%–97%
(3) Density: 16.7–18.8 g/cm³

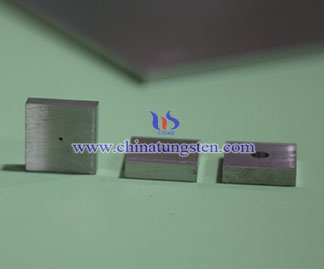

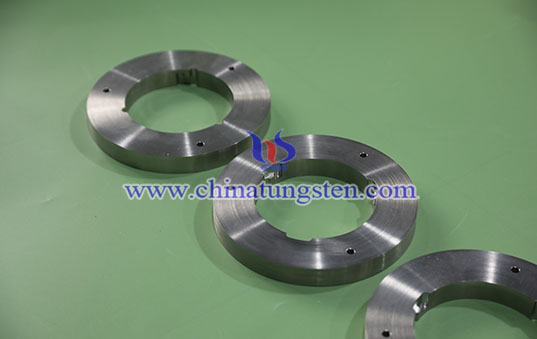

(4) Structures: Shielding covers, shielding plates, shielding rings, collimators, bushings, and custom-shaped shielding components
(5) Dimensions: Customized

CTIA GROUP has nearly 30 years of experience in tungsten alloy manufacturing and combines powder metallurgy with precision machining to produce tungsten alloy shields for aerospace equipment. CTIA manufactures customized shielding components with material grades, shielding thicknesses, structural configurations, and mounting interfaces matched to specific radiation environments and equipment requirements, ensuring accurate dimensions, reliable assembly, and stable long-term performance.
