Tungsten Alloy Radiation Shielding in Industrial Inspection

Tungsten alloy radiation shielding in industrial inspection comprises precision shielding and beam-control structures widely used in industrial Non-Destructive Testing (NDT). CTIA’s tungsten alloy radiation shielding effectively attenuates X-rays and gamma rays while suppressing scattered radiation to support beam collimation and directional control. This improves imaging contrast and defect detection accuracy while enhancing radiation protection in industrial radiographic testing, industrial Computed Tomography (CT), and other precision inspection systems.

1. Features of CTIA’s Tungsten Alloy Radiation Shielding in Industrial Inspection
(1) High Density and Effective Radiation Attenuation: High density of 16.7–18.8 g/cm³ provides effective attenuation of X-rays and gamma rays while reducing scattered radiation.
(2) Compact Design for Equipment Integration: High shielding efficiency enables reduced component thickness and volume, supporting installation in space-constrained inspection equipment.
(3) High Strength and Wear Resistance: Strong mechanical properties, hardness, and wear resistance maintain structural stability under mechanical impact, vibration, and continuous operation.
(4) Thermal Stability for Continuous Operation: Low thermal expansion supports dimensional stability under elevated temperatures, radiation exposure, and prolonged operating conditions.
(5) Lead-Free and Environmentally Compatible: Lead-free composition avoids contamination concerns associated with conventional lead shielding and supports use in industrial and research environments.

2. Applications of CTIA’s Tungsten Alloy Radiation Shielding in Industrial Inspection
(1) Industrial Radiographic Testing: Used in X-ray and gamma-ray inspection equipment as collimators, shielding covers, and protective components to control beam direction and reduce scattered radiation during inspection of welds, castings, pipelines, and pressure vessels.
(2) Industrial Computed Tomography: Used in anti-scatter grids, collimation rings, and radiation shielding structures to reduce scattered radiation and improve three-dimensional imaging quality for precision parts, electronic devices, composite materials, and semiconductor packages.
(3) Radiation Measurement and In-Line Inspection Equipment: Used in thickness gauges, density gauges, and pipeline inspection systems for radiation shielding and beam collimation.
(4) High-Radiation Inspection Environments: Used in nuclear monitoring, security inspection equipment, and other high-energy radiation inspection systems to provide radiation protection for equipment and personnel.

3. Specifications of CTIA’s Tungsten Alloy Radiation Shielding in Industrial Inspection
(1) Grades: 90WNiFe, 92.5WNiFe, 95WNiFe, 97WNiFe
(2) Density: 16.7–18.8 g/cm³

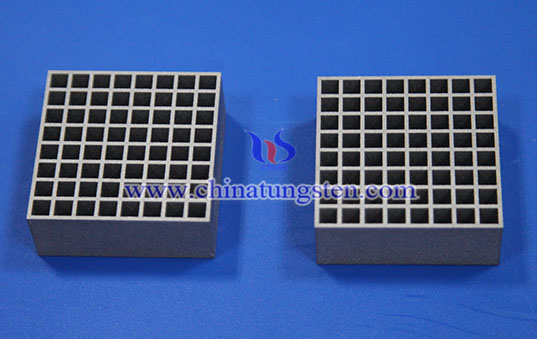

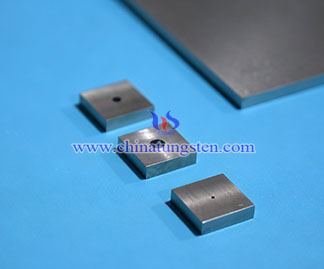

(3) Types: Plate collimators, shielding rings, conical collimators, pinhole collimators, parallel and focused anti-scatter grids
(4) Dimensions: Customized

CTIA GROUP has nearly 30 years of tungsten alloy manufacturing experience in precision shielding parts for industrial inspection equipment. CTIA combines powder metallurgy and precision machining to control density, shielding geometry, and critical dimensions, meeting requirements for radiation attenuation, beam control, and reliable equipment integration.
