Tungsten Alloy Radiation Shielding in Radiotherapy Equipment

Tungsten alloy radiation shielding in radiotherapy equipment refers to shielding and beam control components used in cancer treatment systems. W-Ni-Fe and W-Ni-Cu alloys are used in medical Linear Accelerators (LINAC), Gamma Knife systems, cobalt-60 therapy equipment, and proton therapy systems to attenuate high-energy X-rays, gamma rays, and particle beams, reducing radiation leakage and scattered radiation while enabling precise beam control and treatment-area protection.

1. Features of CTIA’s Tungsten Alloy Radiation Shielding in Radiotherapy Equipment
(1) High Density with High Shielding Efficiency: Attenuate high-energy X-rays and gamma rays effectively with 16.7–18.8 g/cm³ density and 90%–97% tungsten content, enabling thinner shielding layers and more compact equipment integration.
(2) Compact Dimensions for Easy System Integration: Reduce shielding thickness under equivalent attenuation requirements compared with traditional lead, fitting space-constrained precision assemblies such as treatment heads and collimators.

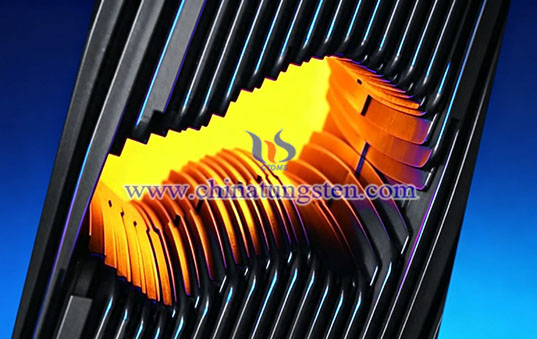

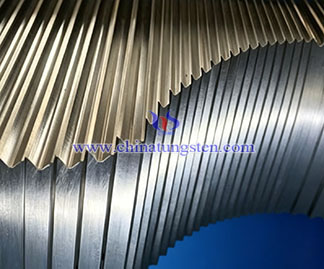

(3) Accurate Collimation for Precise Beam Control: Precision-machinable into Multi-Leaf Collimator (MLC) leaves, collimators, and shielding rings, to accurately shape radiation beams and improve treatment positioning accuracy.
(4) High Mechanical Strength for Stable Operation: Withstand continuous mechanical motion and radiation exposure through tensile strength of 700–1000 MPa, high hardness, wear resistance, and dimensional stability.
(5) High Machining Precision with Strong Structural Adaptability: Supports precision machining, wire EDM, EDM, and grinding/polishing to achieve complex structural geometries with tolerances down to ±0.01 mm, fulfilling high-precision assembly demands.
(6) Non-Toxic and Environmentally Safe: Lead-free compositions eliminate toxic contamination risks associated with lead, making them superior and safer for long-term clinical environments.

2. Applications of CTIA’s Tungsten Alloy Radiation Shielding in Radiotherapy Equipment
(1) LINAC: Supports treatment-head shielding, multi-leaf collimation, and beam-limiting structures for precise control of radiation fields.
(2) Gamma Knife Systems: Controls Co-60 gamma-ray propagation through collimators, shielding rings, and beam control components, directing multiple beams toward treatment targets.
(3) Cobalt-60 Therapy Equipment: Provides source shielding and collimation around radioactive sources to reduce radiation leakage and improve operational safety.
(4) Proton Therapy Equipment: Supports proton beam shaping and localized radiation protection through collimation and shielding components.
(5) Radiotherapy Equipment Shielding: Provides internal shielding and customized protective structures to reduce scattered radiation and support stable equipment operation.

3. Specifications of CTIA’s Tungsten Alloy Radiation Shielding in Radiotherapy Equipment
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.7–18.8 g/cm³
(4) Forms: MLC leaves, collimators, shielding rings, source containers, and custom shielding components
(5) Customization: Dimensions, structures, apertures, and mounting requirements

With nearly 30 years of tungsten alloy manufacturing experience, CTIA GROUP specializes in manufacturing and precision machining tungsten alloy shields for radiotherapy equipment. CTIA controls shielding geometry, critical dimensions, and mounting interfaces through precision machining and inspection to ensure accurate beam control, reliable assembly, and stable long-term performance.
