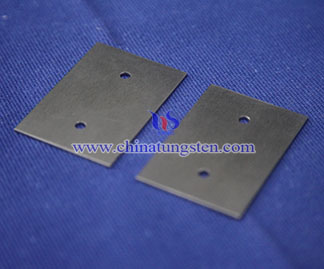

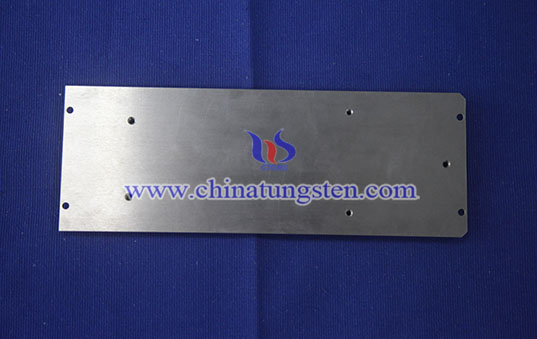

Tungsten Alloy Radiation Shielding Plates

1. What are Tungsten Alloy Radiation Shielding Plates?
Tungsten alloy radiation shielding plates are plate-shaped radiation protection components made from high-density tungsten alloy (W-Ni-Fe or W-Ni-Cu), mainly used for X-ray and γ-ray shielding in large-area or planar protection structures. As one of the most common shielding forms, CTIA's tungsten alloy plates achieve efficient radiation protection with reduced thickness and are widely used in equipment shielding panels, radiation protection walls, local shielding structures, and modular shielding systems for medical nuclear medicine, nuclear industry, industrial inspection, research, and advanced equipment applications.

2. Features of CTIA's Tungsten Alloy Radiation Shielding Plates
(1) High Density Shielding Performance: Provides excellent X-ray and γ-ray attenuation with a density of 16.5–18.8 g/cm³.
(2) Compact Design Capability: Enables thinner and more compact shielding structures than lead plates under the same protection requirements, making it suitable for space-limited equipment.
(3) Stable Structural Performance: Provides reliable installation, assembly, and fixation for shielding walls, equipment liners, and protective partitions.
(4) Lead-Free Environmental Performance: Contains no lead and eliminates pollution risks associated with traditional lead shielding materials, meeting environmental requirements in medical, nuclear, and industrial applications.
(5) Excellent Mechanical Performance: Provides high strength, corrosion resistance, and dimensional stability, with tensile strength up to 700–1000 MPa for long-term use.
(6) Good Machining Performance: Supports cutting, drilling, milling, and precision machining to produce different shielding structures.

3. Applications of CTIA's Tungsten Alloy Radiation Shielding Plates
(1) Medical: Used for stray X-ray shielding in CT equipment, CT room shielding walls, linear accelerator head protection, and radiotherapy room shielding structures.
(2) Nuclear Medicine: Used as inner liners for medical isotope transport containers, radioactive drug handling areas, and nuclear medicine facility shielding.
(3) Nuclear Industry: Used in reactor shielding layers, nuclear waste transport containers, storage containers, and nuclear facility protection structures.
(4) Industrial Inspection: Used for radiation source shielding and protective partitions in industrial CT and X-ray inspection equipment.
(5) Scientific Research: Used in particle accelerators, high-energy physics experimental equipment, and laboratory radiation shielding structures.
(6) Security Inspection: Used for local shielding components and radiation protection barriers in X-ray inspection equipment.

4. Specifications of CTIA's Tungsten Alloy Radiation Shielding Plates
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Dimensions: Thickness 3–50 mm, width ≤500 mm, length ≤2000 mm, customizable
(5) Structures: Standard plates, perforated plates, slotted plates, and customized plates

CTIA GROUP has nearly 30 years of experience in tungsten alloy manufacturing, providing tungsten alloy radiation shielding plates with customized compositions, density levels, and structural designs. With precision machining capabilities, CTIA delivers reliable shielding solutions that meet radiation protection, processing accuracy, and long-term performance requirements in medical, nuclear industry, industrial inspection, research, and advanced equipment applications.
