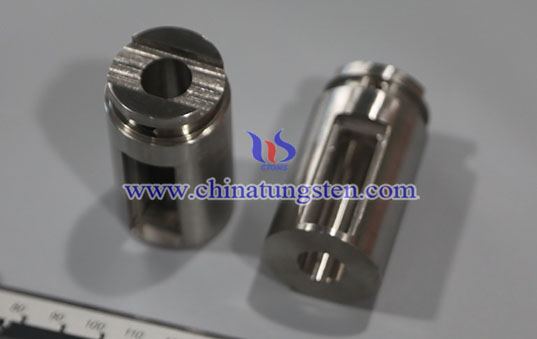

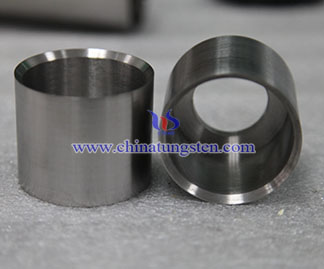

Tungsten Alloy Radiation Shielding Covers

1. What Are Tungsten Alloy Radiation Shielding Covers?
Tungsten alloy radiation shielding covers are high-density tungsten alloy protection components designed for enclosing radioactive sources, radiation generators, and radioactive drug carriers, with excellent X-ray and γ-ray attenuation performance to reduce scattered and stray radiation, widely applied in medical, industrial, and nuclear research fields.

2. Features of CTIA’s Tungsten Alloy Radiation Shielding Covers
(1) Efficient Radiation Shielding: High density of 17.0–18.5 g/cm³ and high atomic number of tungsten enable effective attenuation of X-rays and γ-rays, achieving compact shielding structures with improved protection efficiency compared with lead materials.
(2) Flexible Structural Design: Fixed covers, removable covers, covers with observation windows, and customized structures adapt to different equipment spaces and installation requirements.
(3) High Mechanical Stability: High strength, impact resistance, and dimensional stability support long-term operation and repeated installation or removal conditions.
(4) Lead-Free Environmental Safety: Lead-free composition eliminates lead contamination risks and supports safe cleaning and maintenance in medical and nuclear technology applications.

3. Applications of CTIA’s Tungsten Alloy Radiation Shielding Covers
(1) Medical: Shielding syringes and drug containers containing radioactive materials such as Fluorine-18 (¹⁸F) and Technetium-99m (⁹⁹ᵐTc) in Positron Emission Tomography (PET) and Single Photon Emission Computed Tomography (SPECT), as well as providing local radiation protection for CT equipment, X-ray tubes, and linear accelerators.
(2) Industrial Non-Destructive Testing: Radioactive source shielding components in X-ray and γ-ray inspection equipment, compatible with industrial sources such as Iridium-192 (Ir-192) and Cobalt-60 (Co-60) to reduce radiation leakage.
(3) Oil Well Logging: Local shielding structures for radioactive sources such as Cesium-137 (Cs-137), supporting downhole nuclear measurement and radiation source protection.
(4) Nuclear Research: Temporary shielding of radioactive isotope samples and small radioactive sources in laboratory research environments.
(5) Security Inspection: Local radiation protection components for X-ray generators in security inspection equipment, reducing radiation leakage during operation.

4. Specifications of CTIA’s Tungsten Alloy Radiation Shielding Covers
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 17.0–18.5 g/cm³
(4) Dimensions: Diameter 30–600 mm, height 50–1000 mm, wall thickness 3–100 mm, customizable
(5) Structures: Cylindrical, box-shaped, sleeve-type, covered, and customized structures with optional observation windows, openings, positioning slots, and mounting interfaces

CTIA GROUP has nearly 30 years of experience in tungsten alloy manufacturing, focusing on precision machining and customized production of tungsten alloy shielding components. With flexible structural design capabilities and advanced manufacturing processes, CTIA manufactures radiation shielding covers with various material compositions, dimensions, and configurations to meet different protection requirements in medical, industrial inspection, nuclear research, and security inspection applications.
